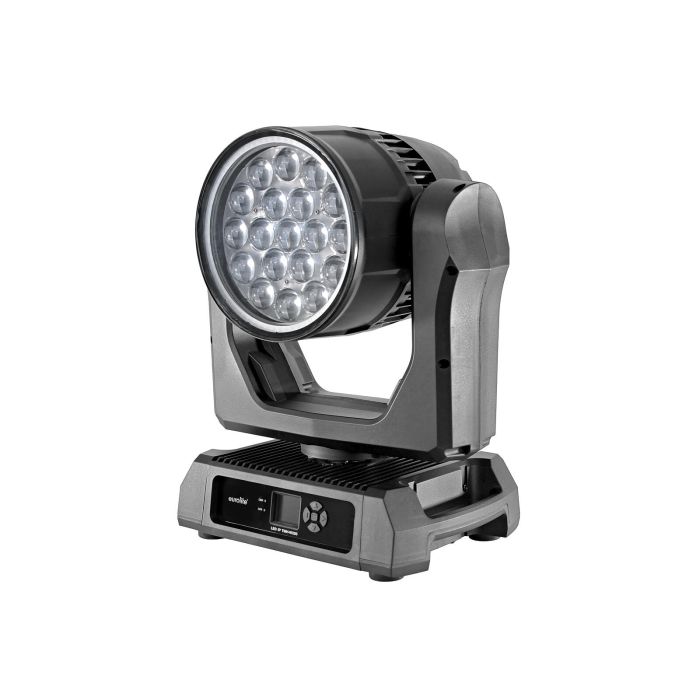

EUROLITE LED IP TMH-W285 Hypno Moving Head Wash

Weather-proof moving washlight with RGBW LEDs, backlighting via RGB hypno LEDs and zoom

• 19 powerful LEDs 15 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
  3 segments controlled separately
• 72 powerful LEDs 0.12 W SMD 2528 3in1 TCL RGB (homogenous color mix)
• Positioning within 540° PAN, 260° TILT
• Auto position correction (feedback)
• Exact positioning (16 bit resolution)
• Zoom motor driven
• Dimmer; Dimmer speed (step response) adjustable; color blend stepless; color macros; colors preset
• Wash effect; beam effect
• The device is cooled by cooling fan at the head
• Control via stand-alone; DMX; RDM; master/slave function
• Flicker-free
• DMX fail mode (hold; blackout)
• With a beam angle of 2° - 48°
• With omega bracket
• Multicolor LCD display
• 2 Rugged carrying handles
• 4 x rubber feet
• Mains input and output for power linking up to 4 units
• Built with SEETRONIC connector
• Suitable for outdoor use IP65
• With pressure compensation membrane
• For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; rental; restaurants, bars and hotels; theater
• Application possibility: Standing; suspended
• Preprogrammed in Light Captain
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Power consumption:	195 W
  IP classification:	IP65
  Protection class:	Protection class I
  Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
  Cable construction:	3 x 1.0 mm² H07RN-F
  Power output:	IP T-Con (F) mounting version
  Lamp type:	LED lamp
  LED type:	19 x 15 W SMD 5050 4in1 QCL RGBW (homogenous color mix) 72 x 0.12 W SMD 2528 3in1 TCL RGB (homogenous color mix)
  Max. TILT movement:	260° exact positioning (16 bit resolution) auto position correction (feedback)
  Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
  Flash rate:	1.3 - 10.6 Hz
  Equipment:	Zoom motor driven
  DMX channels:	18; 26
  DMX input:	3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP
  DMX output:	3-pin XLR (F) mounting version IP 1 x 5-pin XLR (F) mounting version IP
  Cooling:	1 x cooling fan at the head
  Control:	Stand-alone; DMX; RDM; master/slave function
  Preprogrammed in:	Light Captain
  Projection:	Flicker-free
  PWM frequency:	26000 Hz
  DMX fail mode:	Hold; blackout
  Beam angle:	2° - 48°
  Beam angle (1/2 peak):	2 - 30°
  Beam angle (1/10 peak):	8 - 48°
  Housing color:	Black
  Attachment system:	2x omega bracket
  Display type:	Multicolor LCD display
  Status LED:	DMX, fault
  Carrying handle:	2 pc/pcs
  Transport aid:	4 x rubber feet
  Diameter mounting holes:	2 x Ø11mm
  Use of brands:	Built with SEETRONIC connector
  Material:	Plastic
  Dimensions:	Width: 38.8 cm Depth: 25.7 cm Height: 49.1 cm
  Weight:	15.40 kg
  Noise classification:	Class 2 (slight noise) depending on mode used
  Legal specifications
  Special product:	Not designed for household room illumination
  Intended use:	Show effect lighting
