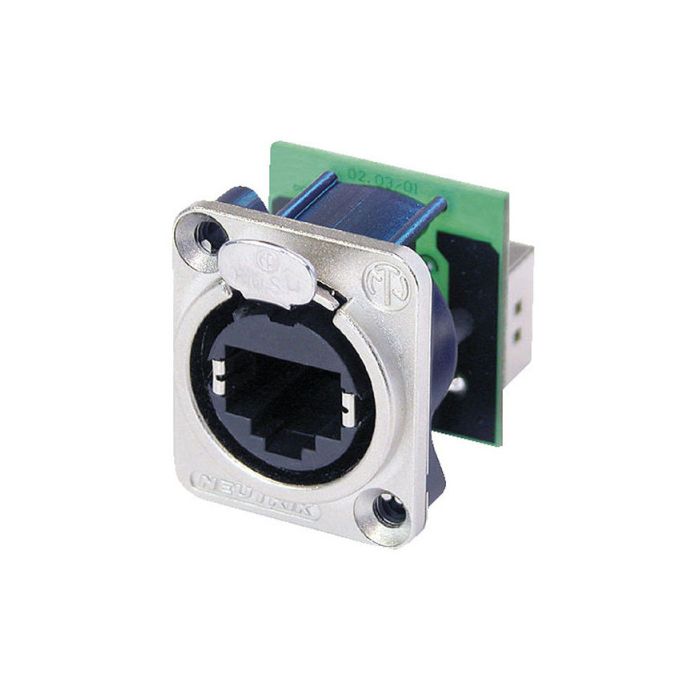

Neutrik Ethercon D-size Feedthrough receptacle in D-sized metal flange with the secure latching system. Nickel
€ 11,12
€ 9,19
?
SKU
NE8FDP
Neutrik Ethercon D-size Feedthrough receptacle in D-sized metal flange with the secure latching system. Nickel
Neutrik Ethercon D-size Feedthrough receptacle in D-sized metal flange with the secure latching system. Nickel
Specifications
Electrical
Frequency bandwidth: 1 - 100 MHz
Number of contacts: 8
Rated current: 1.5 A
Dielectric strength: 1000 V ac rms
Contact resistance: < 10 m
Insulation resistance: > 500 M
Category 5e
Mechanical
Lifetime: 1000 mating cycles
Retention method: latch lock
Panel thickness: max. 4 mm [0.12"]
Materials
Housing: PBTP 15% GR
D-flange: Zinc die cast (ZnAl4Cu1, black chrome)
Strain relief clamp: Ck67, Ni plated
Contacts: Bronze CuSn6
Contact surface: Au (gal 0.2 µm over Ni plating)
Temperature range: -30°C to +80°C
Flammability: UL94-V0
Frequency bandwidth: 1 - 100 MHz
Number of contacts: 8
Rated current: 1.5 A
Dielectric strength: 1000 V ac rms
Contact resistance: < 10 m
Insulation resistance: > 500 M
Category 5e
Mechanical
Lifetime: 1000 mating cycles
Retention method: latch lock
Panel thickness: max. 4 mm [0.12"]
Materials
Housing: PBTP 15% GR
D-flange: Zinc die cast (ZnAl4Cu1, black chrome)
Strain relief clamp: Ck67, Ni plated
Contacts: Bronze CuSn6
Contact surface: Au (gal 0.2 µm over Ni plating)
Temperature range: -30°C to +80°C
Flammability: UL94-V0
