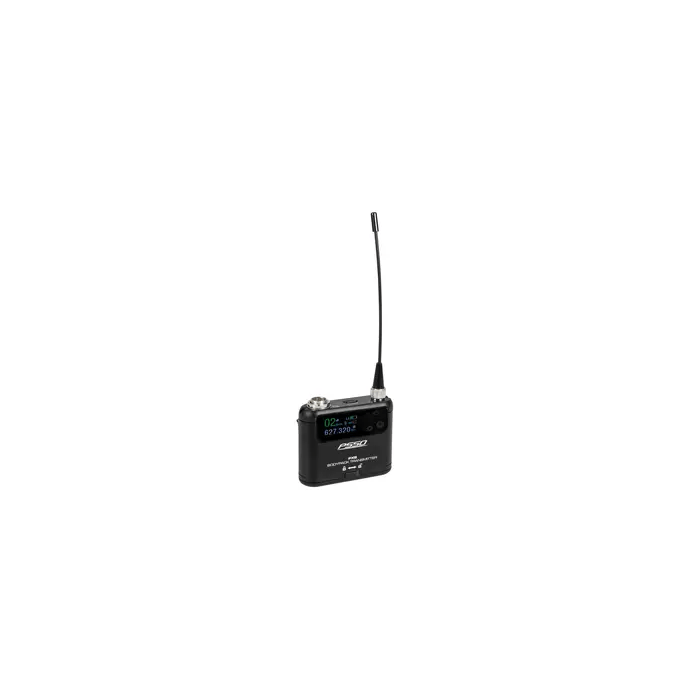

PSSO PXS Mini Bodypack 640-690 MHz

Name: PSSO PXS Mini Bodypack 640-690 MHz
SKU: st13063514
Price: 142.780001 EUR
Availability: PreOrder

€ 142,78 € 118,00

SKU

st13063514

Features

This product is suitable for

PSSO PXS ONE 1-channel True Diversity Receiver 640-690 MHz

Compact bodypack transmitter with battery pack and TFT color display for PXS receivers

Bodypack transmitter with PLL multifrequency transmitter
Small lightweight version
Easy and error-free synchronization between receiver and transmitter via infrared signal
Multicolor TFT display
Operating range up to 200m with line-of-sight
Up to 28 transmitters can be operated in parallel without interference
RF output switchable
Gain level adjustable
Lock function for prevents undesired changes to settings
Powered by a battery/battery pack
Battery operation up to 10h
Charge status indicator

Package contents

Technical specifications

Type:	Pocket transmitter
Power connection:	Battery/battery pack built-in Mains input via USB C (W) mounting version
Battery pack type:	1 x lithium ion 3,7 V, 1000 mAh, 3,7 Wh
Battery pack:	Battery operation up to 10h Recharging time 3h
Battery:	1 x Mignon (AA) (not included)
Frequency range:	30 - 19000 Hz
Range:	Range up to 200m with line-of-sight
Frequency band:	UHF 640 - 690 MHz
Switching bandwidth:	50 MHz
Parallel mode:	Max. 28 transmitter
RF power output:	20 mW (LO); 30 mW (HI)
Housing color:	Black
Display type:	Multicolor TFT display
Display:	Channel , frequency , charge status indicator , Mute
Control elements:	Menu, navigation keys
Connections:	Input: microphone via Mini XLR (M) 4-pin mounting version
Switch:	On/off switch
Material:	Metal
Dimensions:	Width: 6,6 cm Depth: 2,5 cm Height: 15,5 cm
Weight:	0,12 kg
