RELACART UR-260D 2-channel UHF Receiver 522-554 MHz
€ 309,45
€ 255,74
?
SKU
st13055180
RELACART UR-260D 2-channel UHF Receiver 522-554 MHz
RELACART UR-260D 2-channel UHF Receiver 522-554 MHz
Features
Diversity wireless receiver with DSP for microphone modeling and PC software
- 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
- Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitively operated PC software
- High-quality antenna diversity reception
- Up to 12 transmitters can be operated in parallel without interference
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Multiple units can be linked with network cables
- Lock function for prevents undesired changes to settings
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Rugged metal housing
- Digital signal processor 96kHz, 24 bit
- Operating range up to 80m
- Multicolor LCD display
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Package contents

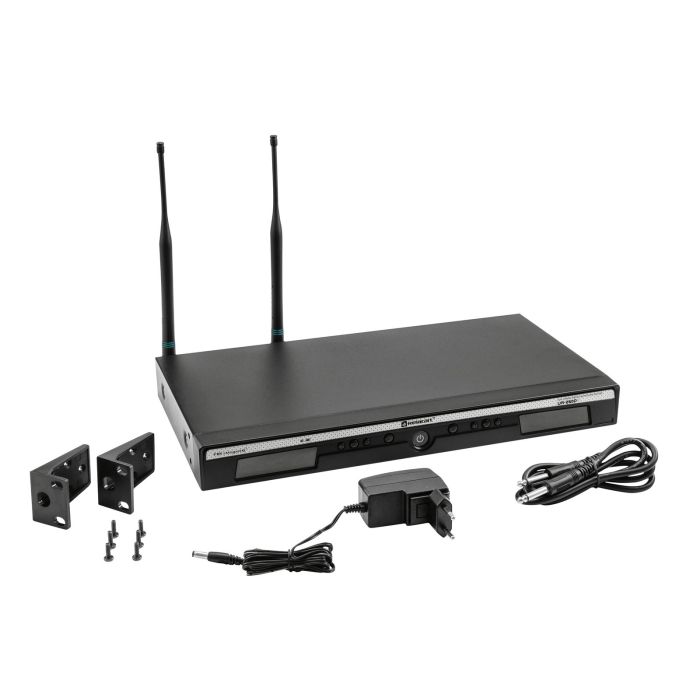

- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | Max. 9 W |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,5 % at 1 kHz |
| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version |
| DSP: | Digital signal processor 96kHz, 24 bit |
| Range: | Range up to 80m |
| Frequency band: | UHF 522 - 554 MHz |
| Diversity: | Antenna diversity |
| Switching bandwidth: | 32 MHz |
| Frequency stability: | ± 0,0005 % |
| Parallel mode: | Max. 12 transmitter |
| Modulation: | FM |
| Frequency selection: | 151 switchable frequencies In 10 groups with up to 18 preset frequencies each |
| Display type: | Multicolor LCD display |
| Control elements: | Power switch, groundlift selector, menu, navigation keys |

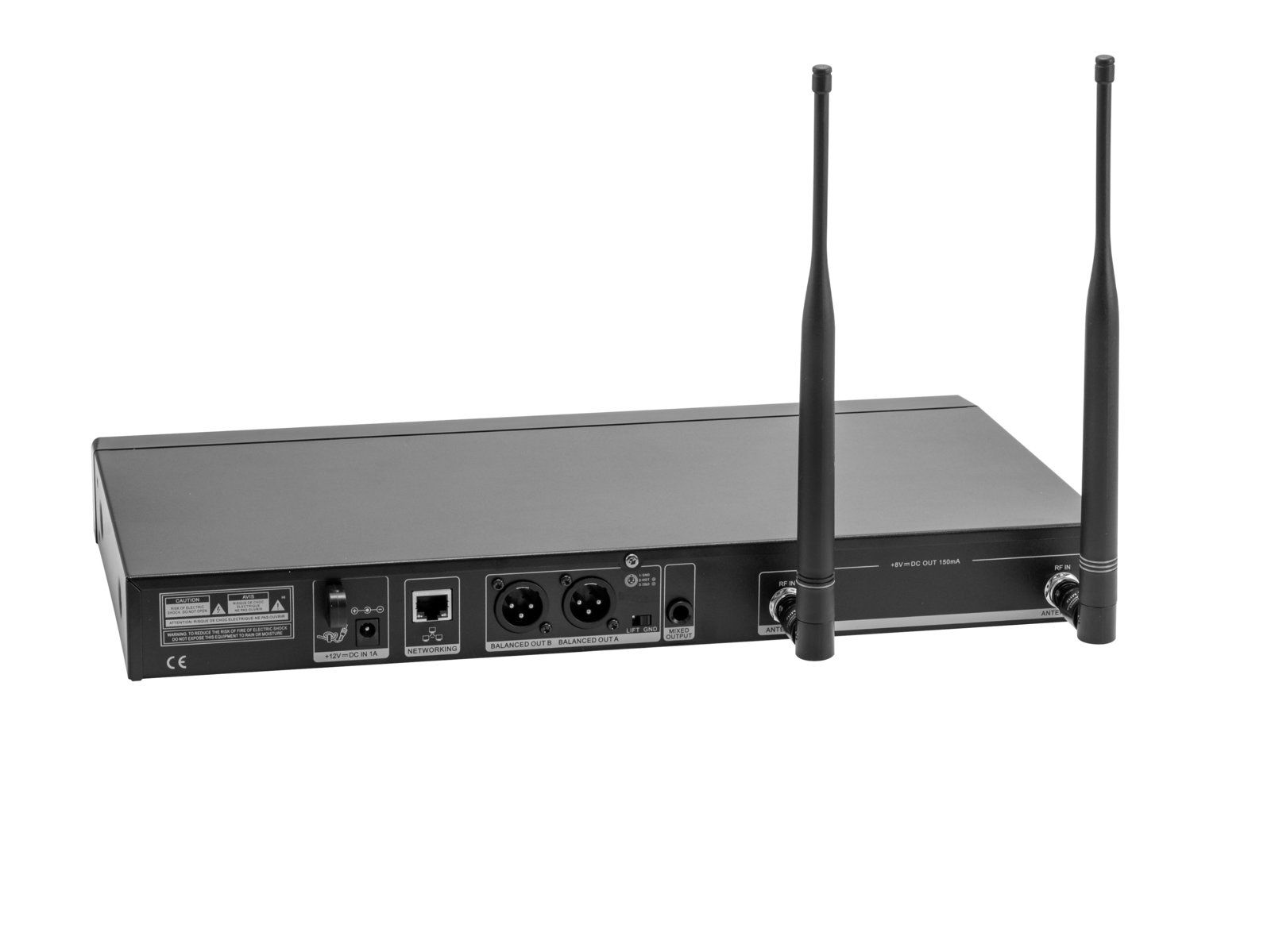

| Connections: | Antenna via 2 x BNC (F) 8 V Output: microphone via 2 x 3-pin XLR (M) mounting version Output: line via 1 x 6.3 mm plug (unbal.) |
| Material: | Metal |
| Color: | Black |
| PC connect: | RELACART Magic EQ software via RJ-45 (F) mounting version |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 41 cm Depth: 26 cm Height: 4,3 cm |
| Weight: | 2,40 kg |
