Showtec Act Profile 150W RGBAL Compact Theatre LED Profile
€ 701,10
€ 579,42
?
SKU
34035
Showtec Act Profile 150W RGBAL Compact Theatre LED Profile
Showtec Act Profile 150W RGBAL Compact Theatre LED Profile
150 W RGBAL LED with high CRI for accurate colour rendering
Suitable for theatrical applications, museums, and exhibitions
Manually adjustable zoom, and shutters
Hard-edged field of light

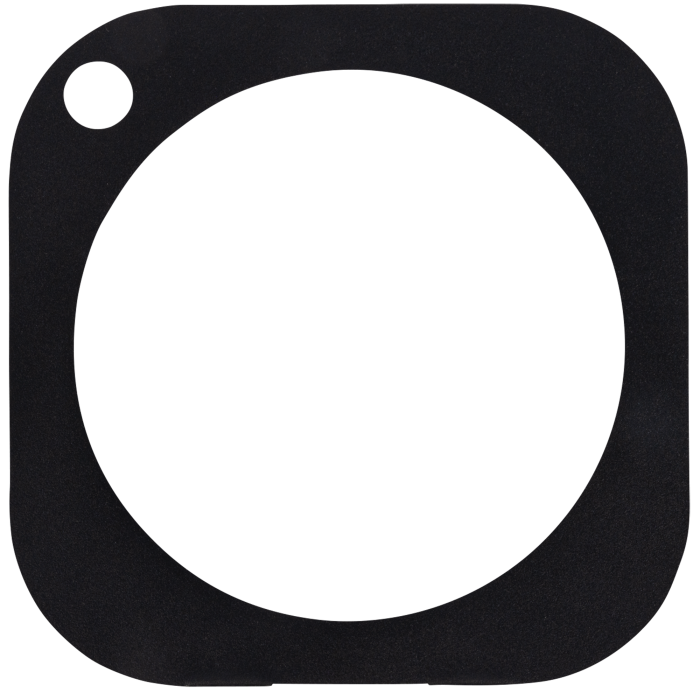

Filter frame included
The Showtec ACT Profile 150 RGBAL is a compact 150-watt RGBAL LED profile with high CRI and silent operation, suitable for theatrical applications, schools, museums, and exhibitions.
It projects a bright, hard-edged beam of light within a 23° - 46° manually adjustable zoom range.

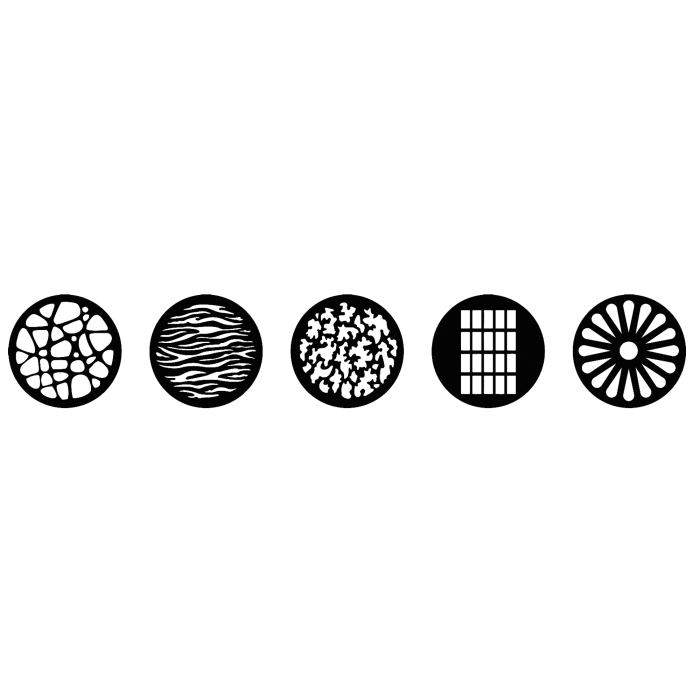

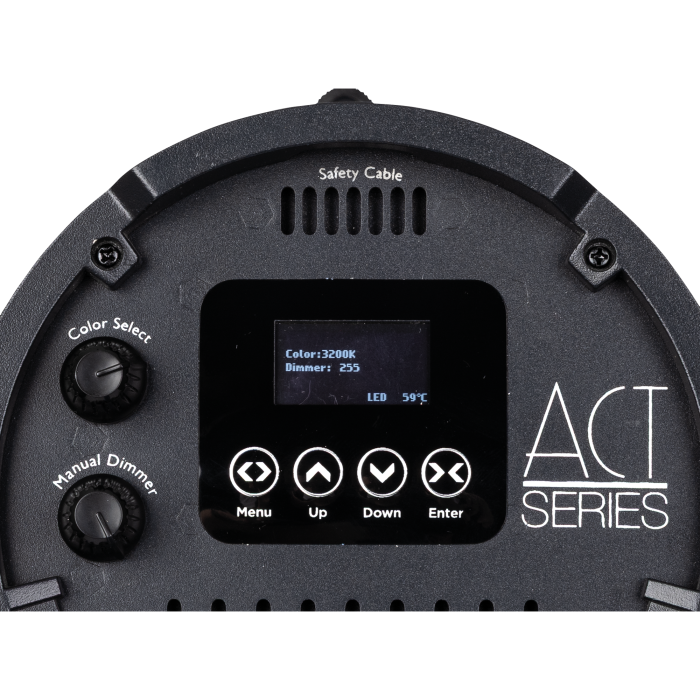

The ACT Profile 150 RGBAL can be controlled via DMX, RDM, and it is equipped with one knob for manual colour and dimmer control. It comes with 5 design gobos and a four-blade shutter system, allowing you to add the proper intensity of light where it's needed.
specs :
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 150W
LED Color Type RGBAL
Refresh Rate (Max.) 1kHz
Illuminance @ 3m 3260 lx
Luminous Flux (Total) 3571 lm
CRI 91
Minimum CCT 2700 K
Maximum CCT 10000K Optical
Beam Angle Minimum (Circular) 23°
Beam Angle Maximum (Circular) 46°
Zoom Type Manual
Zoom Ratio 1:2
Zoom Minimum 23°
Zoom Maximum 46°
Control and Programming
Control Mode DMX, Manual, RDM
DMX Channels 5, 8, 12
Protocols DMX, RDM
Display OLED
DisplaySize1.3"
Dimmer Resolution 16 bit
Dynamic Effects
Dimmer 0-100 %
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 180W
Fuse 3.15 A
Power Connector In Power Pro Blue
Power Connector Out Power Pro Gray
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 531mm (20.906″)
Width (mm) 226mm (8.898″)
Height (mm) 373mm (14.685″)
Weight 6.15 kg (13.558 lb)
IP Rating IP20 (indoor use only)
Housing
Aluminum, Metal
Color Black
Product Properties
Cooling Forced Convection
Rigging
Mounting Options Bracket
Safety Attachment Yes
Safety Eyes 1
Thermal Specifications
Maximum Ambient Temperature 40°C (104°F)
Included Items
Included Cables Power Pro Cable
