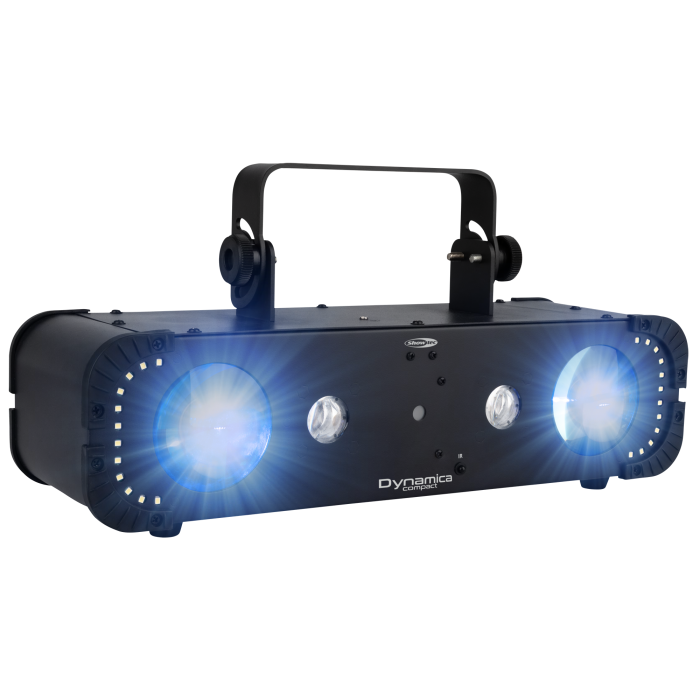

Showtec Dynamica Compact 4-in-1 light effect

Daisy-chain multiple fixtures

Showtec’s Dynamica Compact is a 4-in-1 light effect with beam, strobe, UV wash and laser effects.

The beam function comes from 128 RGBWA LEDs, 24 CW LEDs take care of the strobe effects, while the UV wash comes from 2 high-power LEDs.

The Class 2M laser has 2 laser diodes that project hundreds of red and green laser beams.

Each effect can be controlled individually or they can be combined for an all-in-one light show.

With control via DMX or IR remote, a stand-alone mode and 14 built-in programs, the Dynamica Compact is perfect for DJs, musicians, clubs, bars and more.

To cover larger areas, up to 8 units can be daisy-chained together.

Source

Light Source Type

Diode, DPSS, LED

LED Colour Type RGBWA

LED Strobe Quantity 24

Laser Class 2M

Laser Colour Red, Green

Laser Power (Red) 100 mW

Laser Wavelength (Red) 650 nm

Laser Power (Green) 30 mW

Laser Wavelength (Green) 532 nm

Control and Programming

Control Mode Auto, DMX, Master Slave, Remote, Sound, Stand Alone

DMX Channels 2, 5, 8, 10

Protocols  DMX

Display 7-segment

Electrical Specifications and Connections

Power Supply 100-240 V AC 50/60 Hz

Power Consumption  30 W

Power Connector In  IEC

Power Connector Out  IEC

DMX Connector XLR 3P In/Out

DMX Connector In  XLR 3P

DMX Connector Out  XLR 3P

Mechanical Specifications

Height (mm)  145 mm (5.709″)

Width (mm)  405 mm (15.945″)

Depth (mm)  200 mm (7.874″)

Weight  2.8 kg (6.173 lb)

IP Rating  IP20 (indoor use only)

Housing Aluminium die-cast

Colour Black

Product Properties

Cooling

Convection/Axial fan

Safety Features Safety Eye

Rigging

Mounting Options  Clamp

Safety Attachment  Yes

Thermal Specifications

Maximum Ambient Temperature  40 °C (104 °F)

Product Compliance

Energy efficiency class  T/B/D

Included Items

Included Cables  IEC cable
