Showtec Edison Vintage V1 Retro DMX LED light with dimmer and E27 socket
€ 549,00
€ 453,72
?
SKU
43330
Showtec Edison Vintage V1 Retro DMX LED light with dimmer and E27 socket
Showtec Edison Vintage V1 Retro DMX LED light with dimmer and E27 socket
DMX LED dimmer with E27 socket
Manual and DMX control
Quick-lock mounting bracket included
OLED display for easy control

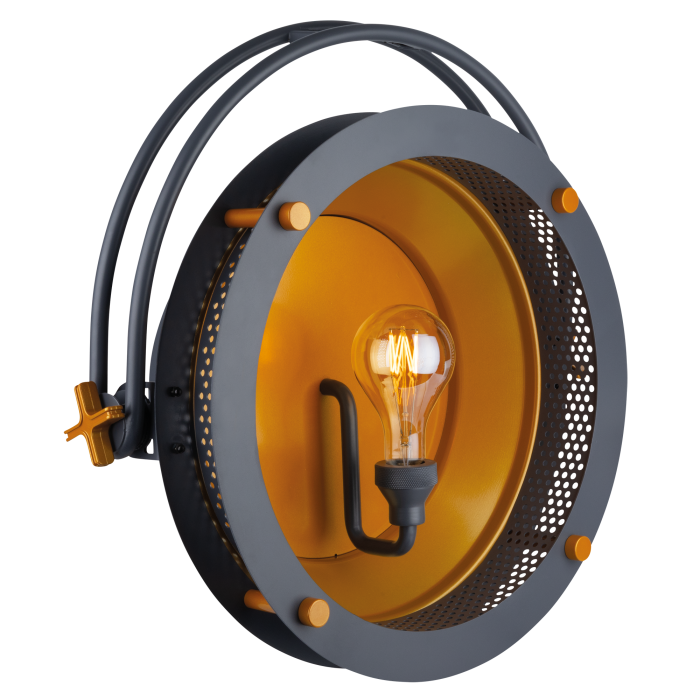

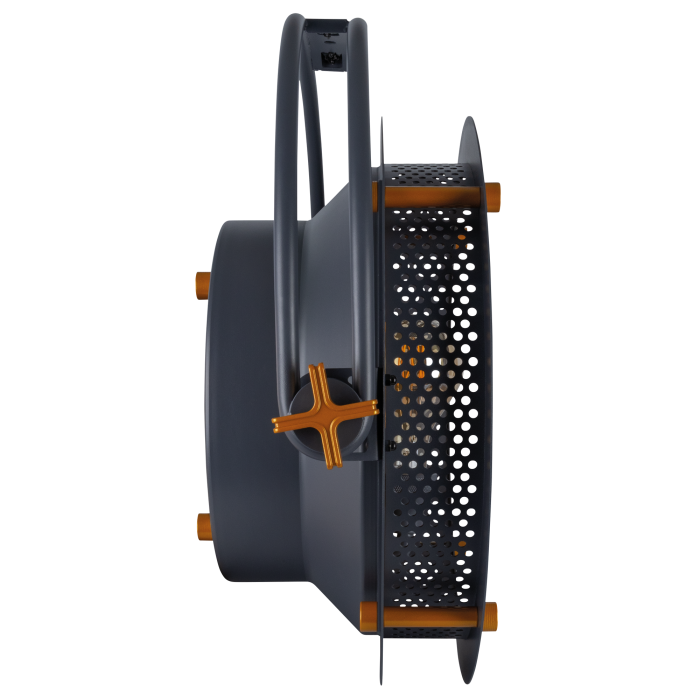

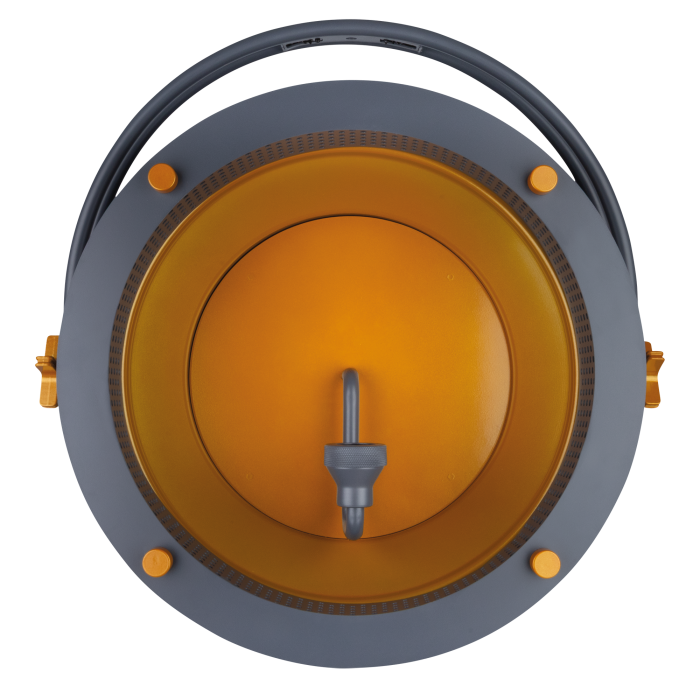

The Showtec Edison Vintage V1 is a large-format, stylish LED light with a retro look.

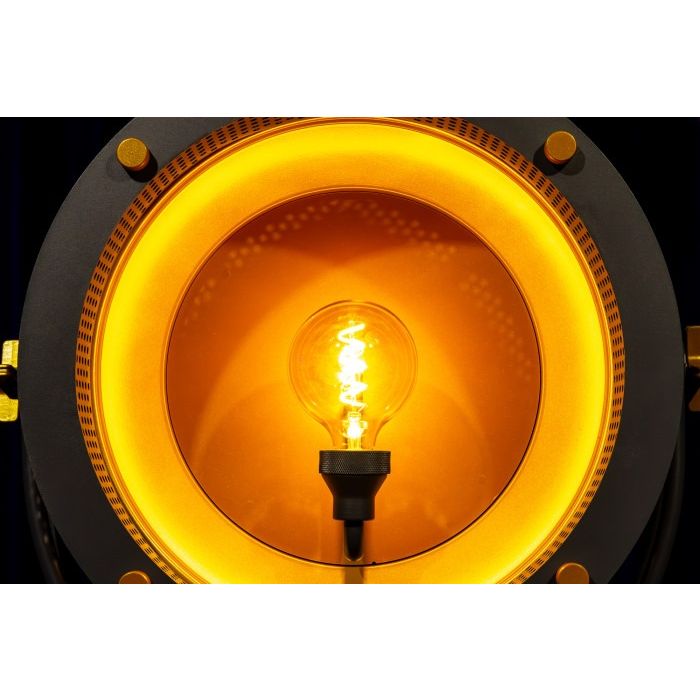

Equipped with an E27 socket suitable for a design LED bulb, it delivers a cosy, vintage glow ideal for stage, studio, or themed environments.
The built-in dimmer supports both DMX control and manual operation, with smooth, non-linear voltage-based dimming for authentic incandescent-style fades.

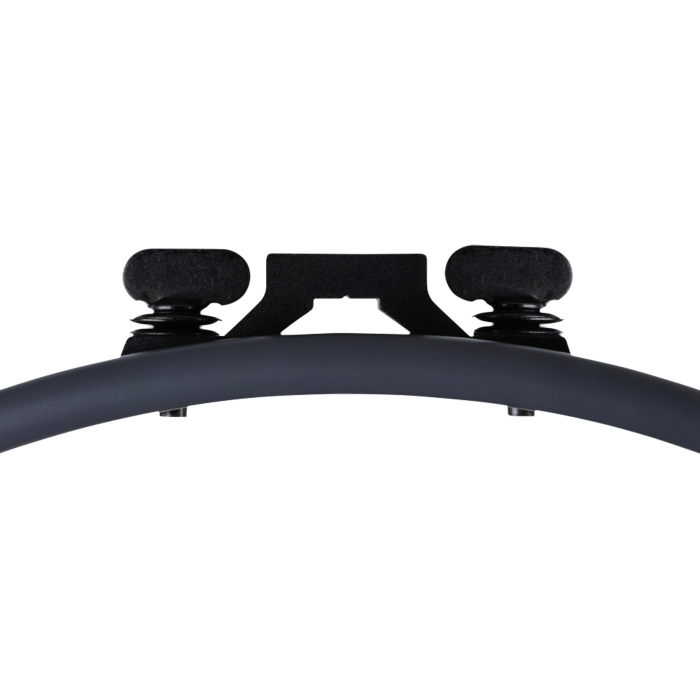

An intuitive OLED display ensures easy configuration, while the quick-lock bracket allows for fast, secure mounting on truss or 50 mm pipe systems.
Specifications
Source
Light Socket E27
Number of Sockets 1
Control and Programming
Control Mode DMX
DMX Channels 2
Protocols DMX, RDM
Display OLED
DisplaySize1.3"
Dim Curve Linear, Square, I-Square, S-Curve
Dimmer Resolution 16 bit
Dynamic Effects
Dimmer 0-100%
Electrical Specifications and Connections
Power Supply
100-240 VAC 50/60 Hz
Power Consumption 6W
Fuse 1 A

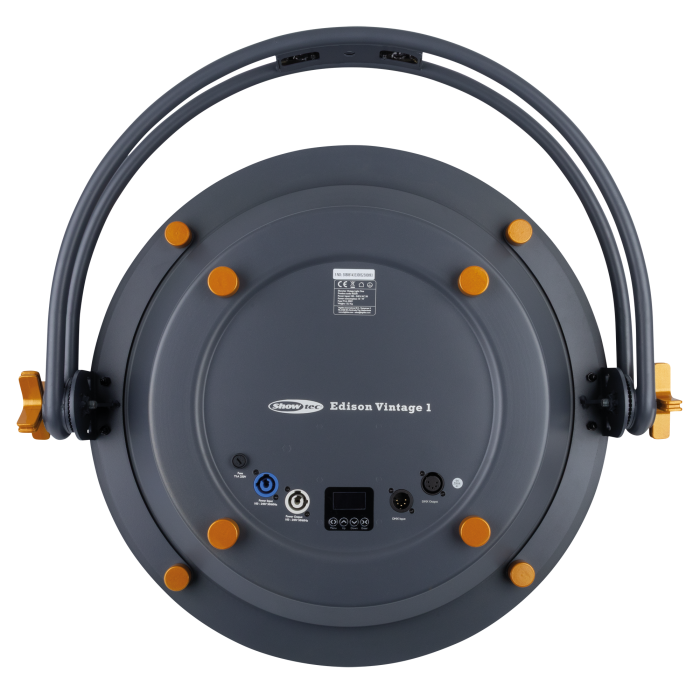

Power Connector In Power Pro Blue
Power Connector Out Power Pro True
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Cable Length 1.5 m
Mechanical Specifications
Height (mm) 693mm (27.283″)
Width (mm) 699mm (27.52″)
Depth (mm) 285mm (11.221″)
Weight8 kg (17,637 lb)
IP Rating IP20 (indoor use only)
MaterialAluminium, Metal
Housing Aluminum, Metal
Color Pale Gold, Gray
Product Properties
Cooling Convection
Rigging
Mounting Options Clamp, Quick Lock
Thermal Specifications
Maximum Ambient Temperature 45°C (113°F)
Included Items
Included Cables Power Pro Cable
Included Rigging Quick-Lock Bracket
